ICSForge™

ICSForge™ is an open-source OT/ICS security coverage validation platform designed to help defenders, SOC teams, and OT security engineers validate detection, visibility, and readiness against real-world industrial attack techniques.

ICSForge focuses on what can actually be observed on the network and generates realistic OT traffic and PCAPs in 10 industrial protocols (Modbus/TCP, DNP3, S7comm, IEC-104, OPC UA, EtherNet/IP, BACnet/IP, MQTT, IEC 61850 GOOSE, PROFINET DCP) which are aligned with 68 of 83 unique techniques in MITRE ATT&CK for ICS v18 (82% coverage) — without exploiting real systems or causing unsafe process impact — to help asset owners and defenders assess the quality of existing security countermeasures such as firewalls, OT NSM sensors and ACLs and identify hidden gaps.

ICSForge is developed with a defender-first and safe-by-design approach around a Sender-Receiver architecture and interacting with the designated sender and receiver, without the need of touching other OT devices. By default, live traffic sends are restricted to RFC 1918 / loopback addresses, and PCAP replay is restricted to private ranges unless explicitly unlocked via Tools → Send Policy.

Most ICS security tools promise coverage - ICSForge lets you prove it.

Key Numbers (v0.61.0)

Metric	Value
Protocols	10 industrial protocols (Modbus/TCP, DNP3, S7comm, IEC-104, OPC UA, EtherNet/IP, BACnet/IP, MQTT, IEC 61850 GOOSE, PROFINET DCP)
Runnable Scenarios	536 standalone + 11 named attack chains = 547 total
ATT&CK for ICS Techniques Implemented	68 unique technique IDs in scenario steps
ATT&CK for ICS Matrix	83 unique technique IDs (94 total entries — 11 appear under multiple tactics)
ATT&CK for ICS Matrix Coverage	82% (68 out of 83 technique) — 35 of 68 techniques at 10/10 protocols
Detection Rules	Auto-generated Suricata + Sigma rules per scenario

Architecture

┌───────────────────────┐                  ┌──────────────────────┐
│   ICSForge Sender     │  TCP/ UDP / L2   │  ICSForge Receiver   │
│                       │ ─>─>─>─>─>─>─>─> │                      │
│ • Scenario engine     │                  │ • Traffic sink       │
│ • 10 protocol builders│                  │ • Marker correlation │
│ • PCAP generation     │                  │ • Receipt logging    │
│ • Campaign playbooks  │   <── callback   │ • Coverage matrix    │
│ • Web UI (:8080)      │                  │ • Web UI (:9090)     │
└───────────────────────┘                  └──────────────────────┘
           │                                          │
           ▼                                          ▼
     ┌───────────┐                            ┌──────────────┐
     │  ATT&CK   │                            │ Correlation  │
     │  Matrix   │                            │    & Gap     │
     │  Overlay  │                            │  Visibility  │
     └───────────┘                            └──────────────┘

How correlation works: Every generated packet embeds an on-wire correlation marker (ICSFORGE_SYNTH|run_id|technique|step). When the receiver detects it, it posts a receipt back to the sender. If the receipt arrives, the packet traversed the wire. If your IDS fires on it, your detection works. Run both to prove Executed → Delivered → Detected.

Stealth mode (--no-marker / toggle in UI): generates bit-for-bit realistic traffic with no ICSForge tags in payloads. Confirmation switches to TCP ACK delivery. Use for IDS/NGFW validation where the marker would betray the test.

Quick Start

Install

git clone https://github.com/ICSforge/ICSforge.git
cd ICSforge
python3 -m venv .venv
source .venv/bin/activate
python -m pip install --upgrade pip
pip install -e .
chmod +x icsforge.sh

Web UI

sudo ./icsforge.sh web        				# Sender dashboard on :8080
sudo ./icsforge.sh receiver   				# Receiver dashboard on :9090
sudo ./icsforge.sh receiver --l2-iface eth0 # Receiver with Profinet Listener

Token: Generated automatically on first sender setup and shown in the setup UI. Copy it to the receiver launch command. Required for receipt integrity.

Or with Docker

docker compose up
# Sender UI:   http://localhost:8080
# Receiver UI: http://localhost:9090

Authentication

On first launch, ICSForge prompts you to create an admin account. All subsequent access requires login. Credentials are stored with scrypt KDF (N=16384, file mode 0600).

Always-public endpoints (no auth required): /api/health, /api/version, /api/technique_support, /api/receiver/callback.

Callback receipt endpoint (/api/receiver/callback): always requires X-ICSForge-Callback-Token once a token is configured (auto-generated on first setup).

Callback registration (/api/config/set_callback): loopback callers (127.x, same-host) are trusted without a token. Remote callers must supply the correct X-ICSForge-Callback-Token. If no token is configured, remote registration is rejected.

Network Configuration: Receiver IP vs Destination IP

ICSForge uses two related but distinct IP concepts in the sender UI:

Receiver IP (Network Settings panel) — the IP of the machine running icsforge receiver. Setting this saves the address to persistent config and attempts to register a callback URL with the receiver so it can push receipts back to the sender automatically. It also auto-fills the Destination IP field below it.

Destination IP (Configuration panel) — the IP written into generated packet headers as the target address. Auto-populated from Receiver IP when you click Save & Connect, but can be overridden independently.

Sync modes:

Mode	How it works	When to use
Callback (default)	Receiver POSTs receipt to sender when marker detected	Sender has a reachable callback address
Pull mode	Sender polls receiver for receipts	Sender is behind NAT or has no public address
SSE	Browser receives real-time events via Server-Sent Events	Campaigns page — live step-by-step progress

# Set receiver IP via CLI
icsforge-receiver --callback-url http://sender-ip:8080/api/receiver/callback

# Or via API
curl -X POST http://localhost:8080/api/config/network \
  -H 'Content-Type: application/json' \
  -d '{"receiver_ip": "192.168.1.50", "receiver_port": 9090}'

ICSForge can be run from the command line interface as well;

CLI — generate a PCAP offline

icsforge generate --name T0855__unauth_command__modbus --outdir out/
# → out/pcaps/T0855__unauth_command__<date>__<word>.pcap
#   out/events/T0855__unauth_command__<date>__<word>.jsonl

CLI — send live traffic

# Terminal 1: start receiver
python -m icsforge.receiver --no-web --bind 127.0.0.1

# Terminal 2: send traffic
icsforge send --name T0855__unauth_command__modbus \
  --dst-ip 127.0.0.1 --confirm-live-network

# With stealth mode (no correlation markers in payloads)
icsforge send --name T0855__unauth_command__modbus \
  --dst-ip 127.0.0.1 --confirm-live-network --no-marker

Protocol Coverage

Protocol	Port	Styles	Techniques (of 68)
OPC UA	TCP/4840	30	59/68
DNP3	TCP/20000	22	57/68
S7comm (Siemens)	TCP/102	36	56/68
EtherNet/IP (Allen-Bradley)	TCP/44818	24	55/68
Modbus/TCP	TCP/502	29	54/68
BACnet/IP	UDP/47808	16	54/68
MQTT	TCP/1883	17	52/68
IEC-104	TCP/2404	20	51/68
PROFINET DCP	L2/EtherType 0x8892	8	44/68
IEC 61850 GOOSE	L2/EtherType 0x88B8	5	42/68

IEC 61850 GOOSE and PROFINET DCP are Layer 2 protocols — they require a raw socket interface (--l2-iface eth0) for live sends. PCAP and offline generation work without a network interface.

Techniques at Full Coverage (10/10 protocols)

T0800, T0801, T0802, T0803, T0804, T0806, T0811, T0813, T0814, T0815, T0819, T0821, T0822, T0826, T0827, T0828, T0829, T0830, T0831, T0832, T0835, T0836, T0840, T0843, T0846, T0848, T0855, T0856, T0858, T0859, T0861, T0866, T0868, T0869, T0877, T0881, T0882, T0885, T0886, T0888, T0889, T0891 — 35 techniques fully covered across all 10 protocols.

Scenarios

Scenarios are defined in icsforge/scenarios/scenarios.yml.

Naming convention: T08XX__<description>__<protocol>[_variant]

Types:

Type	Count	Description
Standalone scenarios	536	Single-technique, single-protocol runs
Named attack chains	11	Multi-step sequences modelling real campaigns

Named attack chains include:

Industroyer2 — Ukraine 2022 power grid attack (IEC-104 + S7comm)
SIS Targeting (TRITON-inspired) — Safety system targeting (SIS), Modbus + S7comm surrogate
Stuxnet-style — Siemens PLC programme manipulation
Water Treatment — Oldsmar-style setpoint tampering (Modbus + IEC-104)
OPC UA Espionage — Silent data exfiltration via OPC UA sessions
EtherNet/IP Manufacturing — Allen-Bradley CIP manipulation
AitM + Sensor Spoof — Adversary-in-the-Middle combined with DNP3 measurement injection
Firmware Persistence — S7comm firmware implant and persistence
Full ICS Kill Chain — Recon to impact (S7comm + Modbus)
Loss of Availability — Multi-protocol concurrent DoS (DNP3 + IEC-104 + Modbus)
Default Creds → Impact — Lateral pivot to programme modification

What Techniques Are Covered

ICSForge implements 68 of 83 ATT&CK for ICS techniques at the network-observable level. The remaining 15 are correctly classified as host-only, require physical access, or generate no network-observable packets — they are documented in icsforge/data/technique_support.json with explicit rationale per technique, and also exposed via /api/technique_support.

ATT&CK matrix counts explained:

83 unique technique IDs in the matrix
94 total matrix entries — 11 techniques appear under multiple tactics (e.g. T0856 Spoof Reporting Message appears under both Evasion and Impair Process Control, which is correct ATT&CK for ICS design)
The /api/matrix_status response includes a matrix_info block that makes this distinction explicit

Web UI Pages

Page	URL	Purpose
Home	`/`	KPIs, top techniques by protocol coverage, scenario browser
Sender	`/sender`	Launch scenarios and chains; configure network; live payload preview; receiver feed

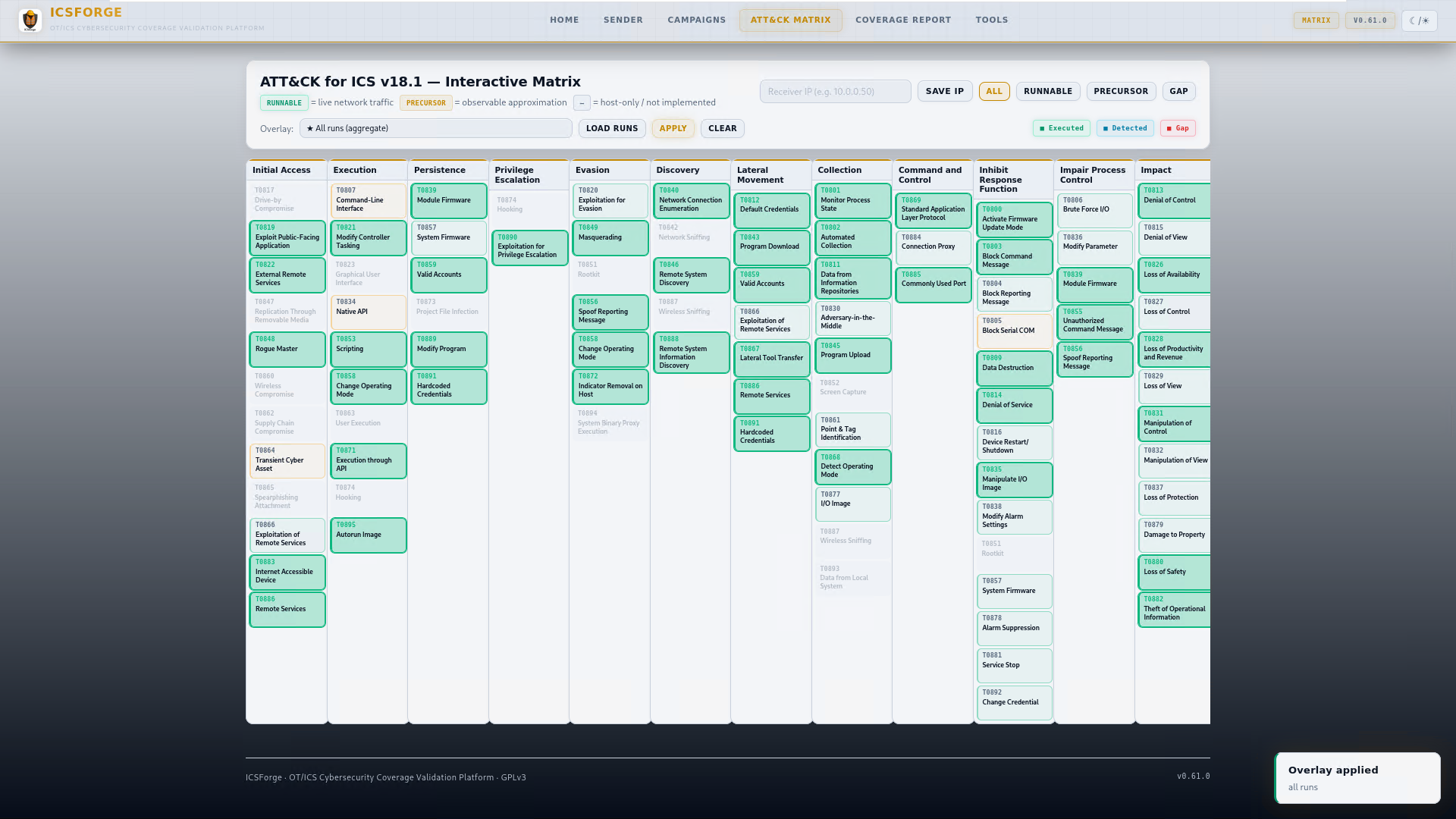

ATT&CK Matrix	`/matrix`	Interactive coverage overlay; click any runnable tile to fire traffic with full technique description
Campaigns	`/campaigns`	Multi-step campaign playbooks and named attack chains with SSE progress
Report	`/report`	Coverage report generation and inline preview; correlation gap analysis; HTML download
Tools	`/tools`	Offline PCAP generation, PCAP upload & replay, alerts ingestion, detection rule download

Key API Endpoints

Run lifecycle

Endpoint	Method	Description
`/api/send`	POST	Send a named scenario or chain live
`/api/generate_offline`	POST	Generate events + PCAP offline (no live traffic)
`/api/runs`	GET	List recent runs from SQLite registry
`/api/run`	GET	Receipt count + techniques for a run (`?run_id=`)
`/api/run_detail`	GET	Full receipt histogram for a run (`?run_id=`)
`/api/run_full`	GET	Complete run detail: artifacts, receipts, techniques (`?run_id=`)
`/api/export`	GET	Generate and download HTML report for a run (`?run_id=`)

All three run-detail endpoints (/api/run, /api/run_detail, /api/run_full) merge both receipt sources — the JSONL file written by the standalone receiver process and the in-memory callback receipts — using a stable content-based deduplication key (run_id, @timestamp, technique, proto, src_ip, src_port).

Scenarios and matrix

Endpoint	Method	Description
`/api/scenarios`	GET	All scenario names
`/api/scenarios_grouped`	GET	Scenarios grouped by ATT&CK tactic (add `?include_steps=0` for lean payload)
`/api/technique/variants`	GET	All runnable variants for a technique (`?technique=T0855`)
`/api/technique/send`	POST	Fire a single technique variant by ID
`/api/matrix_status`	GET	Per-technique coverage status + `matrix_info` counts
`/api/preview`	GET	Scenario metadata preview (`?name=`)
`/api/preview_payload`	GET	Live hex dump of protocol bytes for a scenario step (`?name=&step=&no_marker=`)

Configuration and discovery

Endpoint	Method	Description
`/api/config/network`	GET/POST	Sender/receiver IPs, ports, callback URL, pull mode
`/api/config/receiver_ip`	POST	Set receiver IP and attempt callback registration
`/api/receiver/live`	GET	In-memory live receipts (last 500)
`/api/receiver/callback`	POST	Receipt ingest from receiver (used by receiver process)
`/api/version`	GET	Running version, protocol count, scenario counts (no auth required)
`/api/technique_support`	GET	Full technique support metadata: implementation status and ceiling rationale (no auth required)
`/api/health`	GET	Health check (no auth required)

Detection and reporting

Endpoint	Method	Description
`/api/detections/download`	GET	Download Suricata + Sigma rules
`/api/report/generate`	POST	Generate coverage report HTML for a run
`/api/report/download`	POST	Download generated report as HTML file
`/api/alerts/ingest`	POST	Import Suricata EVE JSONL for correlation (`{"path": "out/alerts/eve.json", "profile": "suricata_eve"}`)
`/api/pcap/upload`	POST	Upload a PCAP file to the server for replay
`/api/pcap/replay`	POST	Replay a PCAP against a destination IP

Note: /api/alerts/ingest requires path to be relative to the ICSForge project root (e.g. out/alerts/suricata_eve.json) — absolute paths are rejected. Returns 400 with a row-specific error for malformed alert fields.

Detection Content

ICSForge auto-generates detection rules directly from its scenario catalog:

# Via Web UI: Tools → Generate Detection Rules
# Preview:  GET  /api/detections/preview
# Download: GET  /api/detections/download

Output formats: Suricata rules (.rules) matching ICSForge correlation markers, and Sigma rules (.yml) for SIEM integration.

Stealth Mode

Standard mode embeds ICSFORGE_SYNTH|run_id|technique|step bytes in every packet payload for precise end-to-end correlation. Stealth mode removes all markers:

# CLI
icsforge send --name T0855__unauth_command__modbus \
  --dst-ip 192.168.1.50 --confirm-live-network --no-marker

# Web UI: toggle "Stealth mode" before clicking Run Live

In stealth mode:

PCAP: contains zero ICSForge-identifying bytes — bit-for-bit identical to real device traffic
Live payload preview: updates immediately when stealth is toggled — shows marker-free hex
Events JSONL: icsforge.marker is null; icsforge.synthetic: true is preserved (accurate ground-truth metadata)
Delivery confirmation: switches from marker detection to TCP ACK

Use stealth mode for IDS/NGFW validation exercises where the marker would trivially identify the test traffic.

Security Model

Destination IP enforcement: /api/send and /api/technique/send only accept RFC1918, loopback, link-local, and TEST-NET addresses — public IPs return HTTP 403. Extend via Tools → Allowed Networks for non-RFC1918 internal ranges (persisted, no restart needed).
Receipt integrity: A callback token is auto-generated on first setup and required on all receipt POSTs. Forged receipts without the correct token are rejected with 401. The token is shown in the setup UI with a one-click copy and the exact receiver launch command.
Callback registration: Loopback callers (same-host) are trusted. Remote receivers must supply the matching token via X-ICSForge-Callback-Token.
Path traversal protection: outdir and alert ingest path parameters are validated against the project root via os.path.realpath().
CSRF protection: All state-mutating API endpoints require X-CSRF-Token header matching the session token.
Security headers: X-Frame-Options: DENY, X-Content-Type-Options: nosniff, Content-Security-Policy, Referrer-Policy on all responses.
Password storage: scrypt KDF (N=16384, r=8, p=1, dklen=32) with random salt.
Rate limiting: 5 login attempts per 60 seconds per IP; 5-minute lockout.
Upload limits: PCAP uploads capped at 100 MB.

Development

pip install -e ".[dev]"
pytest                          # run tests
pytest -q tests/test_e2e_pipeline.py -p no:cov  # E2E pipeline tests
ruff check icsforge/ tests/     # lint (should be clean)
python scripts/smoke_test.py    # 35/35 quick sanity check

Testing

tests/
├── test_web_api.py         — API endpoint tests
├── test_auth.py            — Auth flow and rate limiting
├── test_sse_campaigns.py   — Campaign SSE streaming
└── test_e2e_pipeline.py    — End-to-end pipeline integration (7 tests)

What ICSForge Is Not

Not an exploitation framework — it does not exploit vulnerabilities
Not a PLC hacking tool — it does not modify real device state
Not a malware platform — it generates synthetic traffic only
Not a process-impact simulator — safe-by-design for OT environments
Not a full protocol-faithful emulator — it generates realistic synthetic traffic optimised for detection validation, not device interoperability testing

ICSForge is defender-first, safe by design, and honest about what each technique requires — explicit about which techniques cannot be simulated over the network and why.

Protocol Notes

Layer 2 protocols (IEC 61850 GOOSE, PROFINET DCP) require a raw network interface and the same L2 broadcast domain (no routers between sender and receiver):

# Receiver — start with L2 listener
sudo ./icsforge.sh receiver --l2-iface eth0

# Sender — set Interface (L2) field in the UI, or:
sudo ./icsforge.sh web  # then set iface=eth0 in sender UI

Both PROFINET DCP (01:0E:CF:00:00:00) and GOOSE (01:0C:CD:01:00:00) listeners start automatically with --l2-iface. Raw socket access requires root or CAP_NET_RAW. Offline PCAP generation works without an interface.

MQTT generates all packet types including CONNECT (with credentials and Will message), PUBLISH, SUBSCRIBE, UNSUBSCRIBE, PINGREQ, and DISCONNECT. All 17 styles produce spec-valid frames with correct remaining_length encoding. Requires a broker at the destination IP (default port 1883).

DNP3 implements correct per-block CRC per IEEE 1815-2012 §8.2 — the transport layer payload is split into 16-byte blocks, each followed by its own 2-byte CRC, matching what real DNP3 outstations expect at the link layer.

Source MAC addresses use registered OT vendor OUIs per protocol (Siemens for S7comm, Rockwell for EtherNet/IP, Schneider for Modbus, GE/SEL for DNP3, ABB for IEC-104, etc.) — no locally-administered bit, passes OT NSM vendor lookups cleanly.

TCP source port is stable within a scenario run — derived deterministically from md5(src_ip + dst_ip + run_id) in the ephemeral range 49152–65534. All frames in a run share one source port, matching real ICS master-RTU persistent connections.

OPC UA sessions are coherent within a scenario run — all MSG frames share the same sc_id and security_token, with monotonically incrementing sequence_number and request_id per packet.
